IJOY IVPC Manual PDF Download-Instruction/Problems
Thank you for choosing IJOY ! Please read this manual carefully to ensure proper use. For additional information regarding this product or its use. please consult your local
IJOY retailer or visit ourwebsite: www.ijoycig.com
The IJOY IVPC Kit is an updated all-in-one vaping kit with a mini body, and modern streamlined body style. Equipped with an OLED screen and an exclusive all-
in-one button for easy operation. A latest innovative structure POD with bottom e—liquid injection and intake air from side.Built-in IWEPAL chip-set to offer stable output. Newly increased short circuit / low electrical protection for safe guarding your vaping experience. Combined elegant aesthetic with various functions. The IJOY IVPC Kit makes your daily vaping interesting and colorful, carrying it around anytime, anywhere.
Size: 30*20*80mm
E-Juice Capacity: 2m|
Battery Capacity: 450mAh
Resistance: 1.6ohm
Max Power: 9W
Charging Time: 60min
Charging Port: Micro USB
POD color: translucent black
1. Power on/off
Press the fire button 5 times in quick succession to
turn the device on and off.
2. Vaping
While device is powered on, press and hold down fire button to vape.
3. Power modes:Press the fire button 3 times within 2 seconds to enter the main menu.
Norm mode:Constant pressure 3.6V output.
Hard mode:Constant pressure 3.8V output.
Soft mode: Constant pressure 3.4V output.
BYPASS mode: Output directly.
Anti-leaking design, open the stopper under the bottom and fill the e-liquid directly.
How to clear the puff value manually?
Press the fire button 3 times in 2s to enter the menu, choose "PU FF RESET" icon to enter the puff rest setting, wait 25 to confirm your choice.
Charging: Simply charge the device by connecting it
with the wall adapter or computer through USB cable.
Short circuit protection:
When no atomizer is available, screen will indicate
"NOATOMIZER"when fire button is pressed
When output short circuits, screen will indicate
"SHORT CIRCUIT" when fire button is pressed
low voltage protection :
When battery voltage is less than 3.4V, the IPV will indicate
"LOW POWER" and will no longer output power.
300ma-350ma constant current is used to charge the
battery, and the charging indicator is displayed.
When the battery voltage reaches 4.2V, the charging
current is less than 5mA, stop charging andjump to the
main interface for 5 seconds, and get into hibernation.
Don't use the device in stormy weather or dust condition.
Connect the USB port and charger properly. Unplug the charger when the charging is completed.
Don't put the device in your pocket or handbag directly: don't mix it with coins, jewelry or other hard objects.
The charger and battery may heat when charging. Keep away from flammable gas, liquid or other materials.
DO NOT LEAVE DEVICE UNATTENDED WHILE CHARGING
Keep out of reach of children.
This device is not recommended for use by people
under 18 or non-smoker.
This device is not suitable for use by pregnant or
breast-feeding women.
This device is not suitable for use by people who are
allergic or sensitive to nicotine or those who can't use
nicotine products for health reasons.
This device is not suitable for use by people who has
cardiovascular disease or respiratory disease.
This device is not suitable for use by people who
diseases like cardiac dysfunction, high blood pressure
or diabetes.
Do not leave the device in high temperatures or damp conditions, as this may damage the device. The appropriate operation temperature is within 0 “C to
45 “C while charging and -10 “C to 60 “C while in use.
Do not attempt to combine the device with parts of other brands of e-cigarette. IJOY will not take responsibility and your warranty will be AVOID if any damage caused by this way.
IJOY IVPC Manual.pdf
IJOY retailer or visit ourwebsite: www.ijoycig.com
How to Use IJOY IVPC:
The IJOY IVPC Kit is an updated all-in-one vaping kit with a mini body, and modern streamlined body style. Equipped with an OLED screen and an exclusive all-
in-one button for easy operation. A latest innovative structure POD with bottom e—liquid injection and intake air from side.Built-in IWEPAL chip-set to offer stable output. Newly increased short circuit / low electrical protection for safe guarding your vaping experience. Combined elegant aesthetic with various functions. The IJOY IVPC Kit makes your daily vaping interesting and colorful, carrying it around anytime, anywhere.

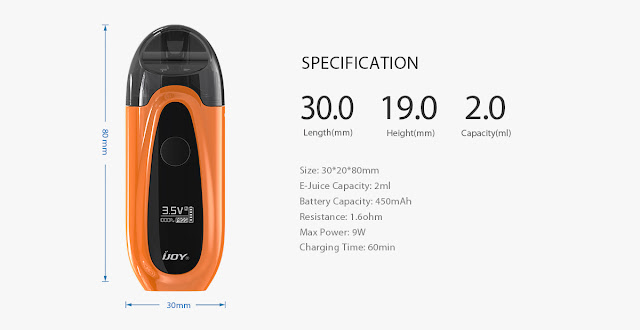

Specifications
Size: 30*20*80mm
E-Juice Capacity: 2m|
Battery Capacity: 450mAh
Resistance: 1.6ohm
Max Power: 9W
Charging Time: 60min
Charging Port: Micro USB
POD color: translucent black
IJOY IVPC Pod Operation instruction:
1. Power on/off
Press the fire button 5 times in quick succession to
turn the device on and off.
2. Vaping
While device is powered on, press and hold down fire button to vape.
3. Power modes:Press the fire button 3 times within 2 seconds to enter the main menu.
Norm mode:Constant pressure 3.6V output.
Hard mode:Constant pressure 3.8V output.
Soft mode: Constant pressure 3.4V output.
BYPASS mode: Output directly.
How to fill e-liquid?
Anti-leaking design, open the stopper under the bottom and fill the e-liquid directly.
How to clear the puff value manually?
Press the fire button 3 times in 2s to enter the menu, choose "PU FF RESET" icon to enter the puff rest setting, wait 25 to confirm your choice.
Charging: Simply charge the device by connecting it
with the wall adapter or computer through USB cable.
IVPC Pod Kit Functions:
Short circuit protection:
When no atomizer is available, screen will indicate
"NOATOMIZER"when fire button is pressed
When output short circuits, screen will indicate
"SHORT CIRCUIT" when fire button is pressed
low voltage protection :
When battery voltage is less than 3.4V, the IPV will indicate
"LOW POWER" and will no longer output power.
Charging function
300ma-350ma constant current is used to charge the
battery, and the charging indicator is displayed.
When the battery voltage reaches 4.2V, the charging
current is less than 5mA, stop charging andjump to the
main interface for 5 seconds, and get into hibernation.
Precautions:
Don't use the device in stormy weather or dust condition.
Connect the USB port and charger properly. Unplug the charger when the charging is completed.
Don't put the device in your pocket or handbag directly: don't mix it with coins, jewelry or other hard objects.
The charger and battery may heat when charging. Keep away from flammable gas, liquid or other materials.
DO NOT LEAVE DEVICE UNATTENDED WHILE CHARGING
Warning:
Keep out of reach of children.
This device is not recommended for use by people
under 18 or non-smoker.
This device is not suitable for use by pregnant or
breast-feeding women.
This device is not suitable for use by people who are
allergic or sensitive to nicotine or those who can't use
nicotine products for health reasons.
This device is not suitable for use by people who has
cardiovascular disease or respiratory disease.
This device is not suitable for use by people who
diseases like cardiac dysfunction, high blood pressure
or diabetes.
Attention:
Do NOT Attempt to repair this unit yourself. Possible damage and personal injury can occur as well as your warranty being voided. Contact service@ijoycig.com forwarranty repair.Do not leave the device in high temperatures or damp conditions, as this may damage the device. The appropriate operation temperature is within 0 “C to
45 “C while charging and -10 “C to 60 “C while in use.
Do not attempt to combine the device with parts of other brands of e-cigarette. IJOY will not take responsibility and your warranty will be AVOID if any damage caused by this way.
Click to download the IJOY IVPC Manual:
IJOY IVPC Manual.pdf
